Chert raw materials and artefacts from NE Bulgaria: A combined petrographic and LA-ICP-MS study

Polina Andreeva; Elitsa Stefanova; Maria Gurova

doi:10.2218/jls.v1i2.1129

Polina Andreeva Geological Institute, Bulgarian Academy of Sciences
Elitsa Stefanova Geological Institute, Bulgarian Academy of Sciences
Maria Gurova National Institute of Archaeology and Museum, Bulgarian Academy of Sciences

Keywords: Chalcolithic, northeastern Bulgaria, Ludogorie, Ravno, Kriva Reka, petrogpahy, LA-ICP-MS, super-blades, workshops

Abstract

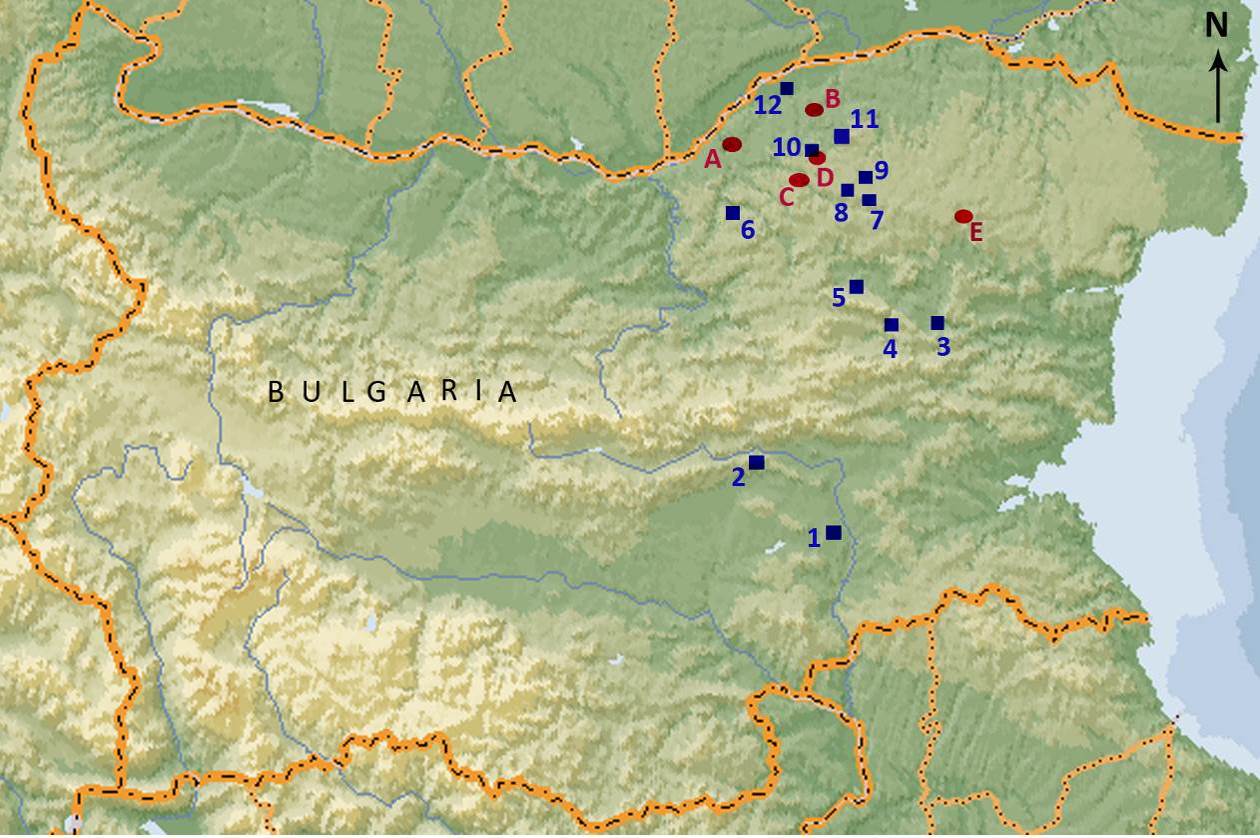

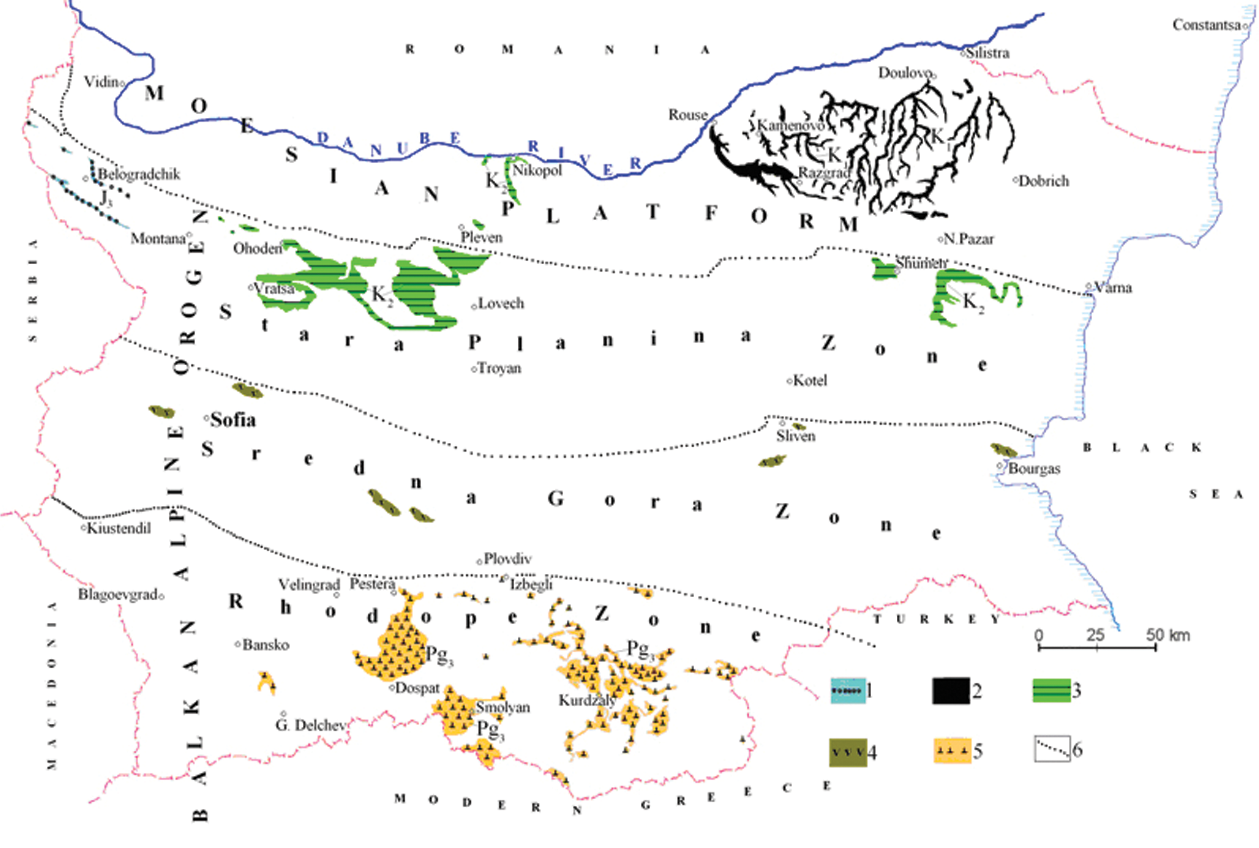

In the present study two analytical methods are applied to characterize chert artefacts and raw materials from northeastern Bulgaria (Ludogorie region): petrographic observation and laser ablation inductively coupled plasma mass spectrometry). Archaeological samples from 12 Chalcolithic sites from Bulgaria are analyzed as well as raw material from 6 outcrops in northeastern Bulgaria are identified and documented during a survey in 2012 when many raw material samples were collected. The chert raw material mostly occurs in various Quaternary secondary deposits, originating from destruction and disintegration of the Lower Cretaceous (Aptian) limestones in the area. The paper is aimed at tracing the provenance of the artefacts based on their petrographic characteristics and geochemical composition. The archaeological evidence shows a wide distribution of the Ludogorie chert throughout the country.

On the basis of micropetrographic observations, Gurova and Nachev (2008) described two main chert types (Ravno and Kriva Reka). Our petrographic study confirmed the previous results and an additional chert type was distinguished, originating from primary and secondary deposits (quarries in Koprivetz and Krasen villages) and is represented by silicified limestones (bioclastic-peloidal packstones or grainstones). It is noteworthy that the first two types of chert were largely used for prehistoric artefact manufacturing while the last one is not attested among studied assemblages at all.

References

Guillong, M., Meier, D.L., Allan, M.M., Heinrich, C.A. & Yardley, B.W.D. 2008, Appendix 6: SILLS: a Matlab- based program for the reduction of laser ablation ICP-MS data of homogeneous materials and inclusions. In: Laser Ablation ICP-MS in the Earth Sciences: Current Practices and Outstanding Issues (Sylvester, P., Ed.) Mineralogical Association of Canada Short Course Vol. 40, Mineralogical Association of Canada, Québec: p. 328–333.
Gurova, M. 2005, Feuersteinartefakte. Functionanalyse. In: Karanovo IV : die Ausgrabungen im Nordsüd-Schnitt, 1993-1999. Band IV Band IV (Hiller, S. & Nikolov, V., Eds.), Phoibos Verlag, Vienna: p. 387-409 & Pl. 215-220. (in German) ("Chert artefacts. Functional analysis")
Gurova, M. 2010, Connotations fonctionnelles des grandes lames chalcolithiques : Exemple de la Bulgarie. Archaeologia Bulgarica, 14(2): 1-10. (in French) ("Functional connotation of the Chalcolithic long blade: case study of Bulgaria")
Gurova, M. 2011a, Chalcolithic Flint Assemblages: Trajectory to the Regional Diversity/Similarity. In: Golden Vth millennium. Thrace and neibourhingh regions in the Chalcolithic (Boyadziev, Y. & Ignatova, S., Eds.), NIAM-BAS, Sofia: p. 273-284.
Gurova, M. 2011b, A Late Chalcolithic Flint Assemblage from the Site of Kosharna, Russe District. In: The Lower Danube in Prehistory: Landscape Changes and Human-Environment Interactions (Mills, S. & Mirea, P., Eds.), Editura Renaissance, Bucharest: p. 179-196.
Gurova, M. 2011c, Етнографски и археологически дикани: трансрегионална перспектива. Bulgarian e-Journal of Archaeology, 1(1): 1-39. (in Bulgarian) ("Ethnographic and archaeological tribula: trans-regional perspective") URL: http://be-ja.org/article/ethnographic-and-archaeological-tribula-transregional-perspective-2/
Gurova, M., Ivanova, S., Andreeva, P. & Kiselinov, H. 2013a, Издирвания на археологически обекти в област Русе. In: Археологически открития и разкопки през 2012 г. (Archaeological discoveries and excavations in 2012), NIAM-BAS, Sofia: p. 525-527. (in Bulgarian) ("Survey for archaeological settlements in Russe district")
Gurova, M., Ivanova, S., Andreeva, P., Kiselinov, H., Mateva, B. & Dilov, D. 2013b, Издирвания на археологически обекти в област Разград. In: Археологически открития и разкопки през 2012 г. (Archaeological discoveries and excavations in 2012), NIAM-BAS, Sofia: p. 527-530. (in Bulgarian) ("Survey for archaeological settlements in Razgrad district")
Gurova, M. & Nachev, C.I. 2008, Formal Early Neolithic flint toolkits: archaeologicaland sedimеntological aspects. In: Geoarchaeology and archaeomineralogy. Proceedings of the International Conference, 29-30 October 2008 Sofia (Kostov, R.I., Gaydarska, B. & Gurova, M., Eds.), “St. Ivan Rilski” Publishing House, Sofia: p. 29-35.
Kanchev, K. 1978, Проучването на флинтовия материал от археологически разкопко. Проблеми и задачи. Интердисциплинарни изследвания (Interdisciplinary Studies), 2: 81-89. (in Bulgarian) ("Investigation of the chert material from the archaeological excavations: problems and purposes")
Manolakakis, L. 2005, Les industries lithiques énéolithiques de Bulgarie. Internationale Archäologie Vol. 88. Verlag Marie Leidorf Rahden, Westphalia, 457 p. (in French) ("The lithic assemblages from the Chalcolithic in Bulgaria")
Manolakakis, L. 2006, Les très grandes lames de Varna : quelle fonction? In: La fin de l'âge de pierre en Europe du Sud : matériaux et productions lithiques taillées remarquables dans le Néolithique et le Chalcolithique du sud de l'Europe : actes de la table ronde de l'EHESS, Carcassonne, 5-6 septembre 2003 (Vaquer, J. & Briois, F., Eds.) Archives d'Ecologie Prehistorique Vol. 18, Éditions des Archives d'Écologie Préhistorique, Toulouse: p. 5-24. (in French) ("The long blades from Varna (Bulgaria): for which purpose?; In: The end of the Stone Age in southern Europe. Materials and remarkable chipped-stone production in the Neolithic and the Chalcolithic of south Europe")
Manolakakis, L. 2011, A flint deposit, a tell and a shaft: a lithic production complex at Ravno 3-Kamenovo? (Early Chalcolithic, North-East Bulgaria). Studia Praehistorica, 14: 225-244.
Mateva, B. 2011, Exploiting flint deposits in Northeastern Bulgaria in the Chalcolithic. In: The Lower Danube in Prehistory: Landscape Changes and Human-Environment Interactions (Mills, S. & Mirea, P., Eds.), Renaissance, Bucharest: p. 173-178.
Nachev, C. 2009, Основните типове флинт в България като суровини за направа на артефакти. Интердисциплинарни изследвания (Interdisciplinary Studies), 20-21: 7-21. (in Bulgarian) ("The main chert types in Bulgaria as raw material for artefacts")
Nachev, I.K. & Kanchev, K.S. 1984, Aptiean and Quaternary flint in North-East Bulgaria. In: IIIrd Seminar on Petroarchaeology (Plovdiv, 27-30 August, 1984, Bulgaria) (Kunchev, K.S., Nachev, I.K. & Tcholakov, N.T., Eds.), Institute of Archaeology and Museum - Bulgarian Academy of Science, Plovdiv University, Plovdiv: p. 65-82.
Nachev, I.K. & Nachev, C.I. 1989, Distribution and evolution of siliceous rocks in Bulgaria. In: Siliceous deposits of the Tethys and Pacific Regions (Hein, J.R. & Obradović, J., Eds.), Springer-Verlag, New York: p. 81-92.
Nikolov, T. 1969, Стратиграфия на долната креда в част от североизточна България. Известия на геологическия институт (Bulletin of Geological Institute, Bulgarian Academy of Sciences), 18: 31-71. (in Bulgarian) ("Stratigraphy of Lower Cretaceous in part of northeastern Bulgaria")
Skakun, N.N. 2006, Орудия труда и хозяйство древнеземледельческих племен Юго-восточной Европы в эпоху энеолита (по материалам культуры Варна). Trudy (Institut istorii materialʹnoĭ kulʹtury (Rossiĭskai︠a︡ akademii︠a︡ nauk)) Vol. 21. Нестор-История, Saint Petersburg, 223 p. (in Russian) ("Tools and economy of the ancient agricultural communities in southeastern Europe in the Chalcolithic (based on the Varna Culture")

DOI: https://doi.org/10.2218/jls.v1i2.1129
